UM6 Serial Expansion Board

UM6 Serial Expansion Board

Discontinued. Expansion board, serial cable, and power supply for connecting the UM6 to your PC through a serial port.

Price each:

Currently unavailable

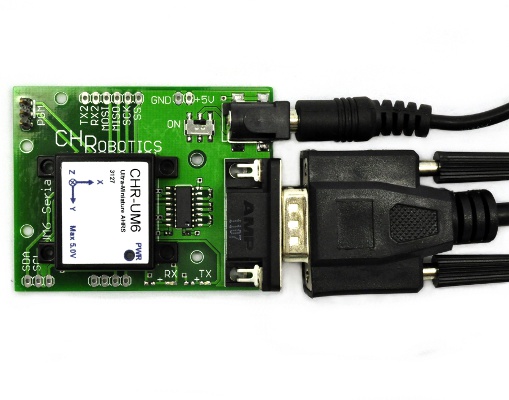

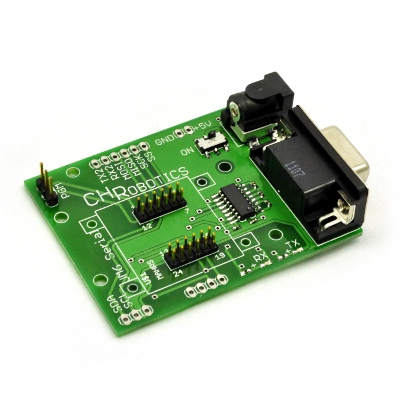

Discontinued. The UM6 Serial Expansion Board makes it easy to connect the UM6 to a computer using an RS-232 serial port or a USB-serial converter. Using the UM6 Serial Breakout Board together with CH Robotics free Serial Interface software, you can be configuring the UM6, graphing data in real-time, and logging data in a matter of minutes.

Features

  • Comes with DB-9 serial cable and +5V wall-mount power supply
  • UM6 sensor plugs directly into the serial breakout board - no soldering required
  • Allows UM6 firmware upgrades to be performed easily and quickly

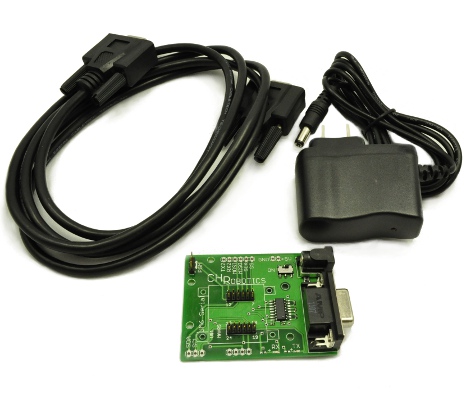

Comes with:

  • 120V/60Hz AC Wall Adapter
  • 6 ft. DB-9 Male-Male Serial Cable
  • Expansion Board

Software Downloads

Source Code

  • UM6 Firmware Source Code
    The UM6 Firmware is available in a SourceForge project at the above link. Once there, click “Code” to get started.
  • CHR Serial Interface

There are currently no documents available for this product.
