# Understanding Euler Angles

### 1. Introduction

Attitude and Heading Sensors from CH Robotics can provide orientation information using both Euler Angles and Quaternions.  Compared to quaternions, Euler Angles are simple and intuitive and they lend themselves well to simple analysis and control.  On the other hand, Euler Angles are limited by a phenomenon called “Gimbal Lock,” which we will investigate in more detail later.  In applications where the sensor will never operate near pitch angles of +/- 90 degrees, Euler Angles are a good choice.

Sensors from CH Robotics that can provide Euler Angle outputs include the GP9 GPS-Aided AHRS, and the UM7 Orientation Sensor.

Figure 1 – The Inertial Frame

Euler angles provide a way to represent the 3D orientation of an object using a combination of three rotations about different axes.  For convenience, we use multiple coordinate frames to describe the orientation of the sensor, including the “inertial frame,” the “vehicle-1 frame,” the “vehicle-2 frame,” and the “body frame.”  The inertial frame axes are Earth-fixed, and the body frame axes are aligned with the sensor.  The vehicle-1 and vehicle-2 are intermediary frames used for convenience when illustrating the sequence of operations that take us from the inertial frame to the body frame of the sensor.

It may seem unnecessarily complicated to use four different coordinate frames to describe the orientation of the sensor, but the motivation for doing so will become clear as we proceed.

For clarity, this application note assumes that the sensor is mounted to an aircraft.  All examples and figures are given showing the changing orientation of the aircraft.

### 2. The Inertial Frame

The “inertial frame” is an Earth-fixed set of axes that is used as an unmoving reference.  CH Robotics’ sensors use a common aeronautical inertial frame where the x-axis points north, the y-axis points east, and the z-axis points down as shown below.  We will call this a North-East-Down (NED) reference frame.  Note that because the z-axis points down, altitude above ground is actually a negative quantity.

The sequence of rotations used to represent a given orientation is first yaw, then pitch, and finally roll.

### 3. The Vehicle-1 Frame (Yaw Rotation)

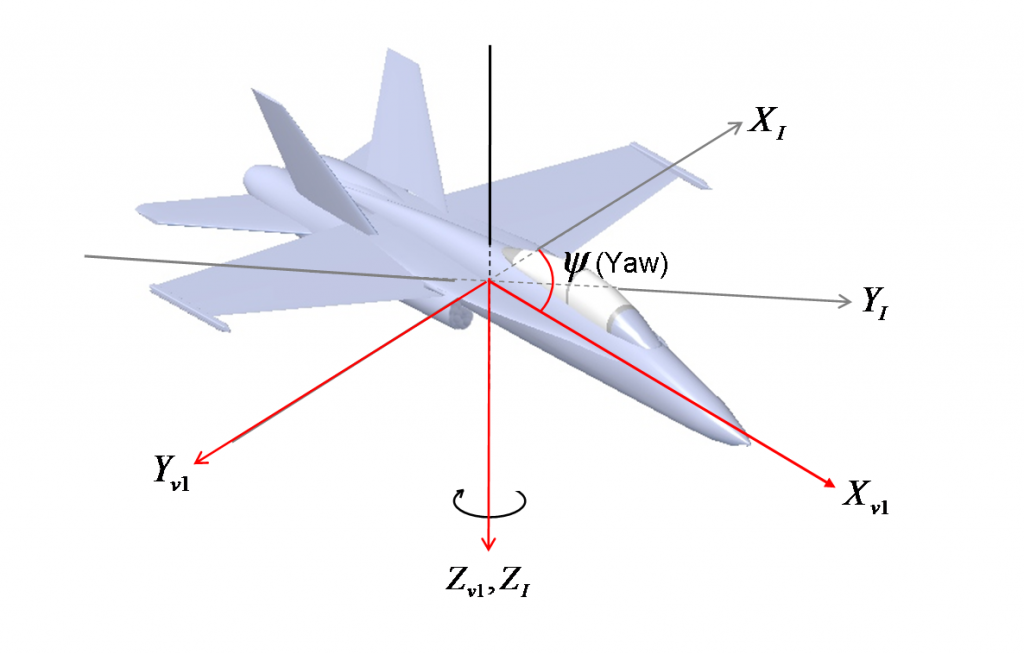

As shown in Figure 1, yaw represents rotation about the inertial-frame z-axis by an angle $\psi$.  The yaw rotation produces a new coordinate frame where the z-axis is aligned with the inertial frame and the x and y axes are rotated by the yaw angle $\psi$.  We call this new coordinate frame the vehicle-1 frame.  The orientation of the vehicle-1 frame after yaw rotation is show in Figure 2.  The vehicle-1 frame axes are colored red, while the inertial frame axes are gray.

Figure 2 – Yaw rotation into the Vehicle-1 Frame

Rotation of a vector from the Inertial Frame to the Vehicle-1 Frame can be performed by multiplying the vector by the rotation matrix

$R_I^{v1}(\psi)&space;=&space;\begin{pmatrix}&space;\cos(\psi)&space;&&space;\sin(\psi)&space;&&space;0&space;\\&space;-\sin(\psi)&space;&&space;\cos(\psi)&space;&&space;0&space;\\&space;0&space;&&space;0&space;&&space;1&space;\end{pmatrix}.$

### 4. The Vehicle-2 Frame (Yaw and Pitch Rotation)

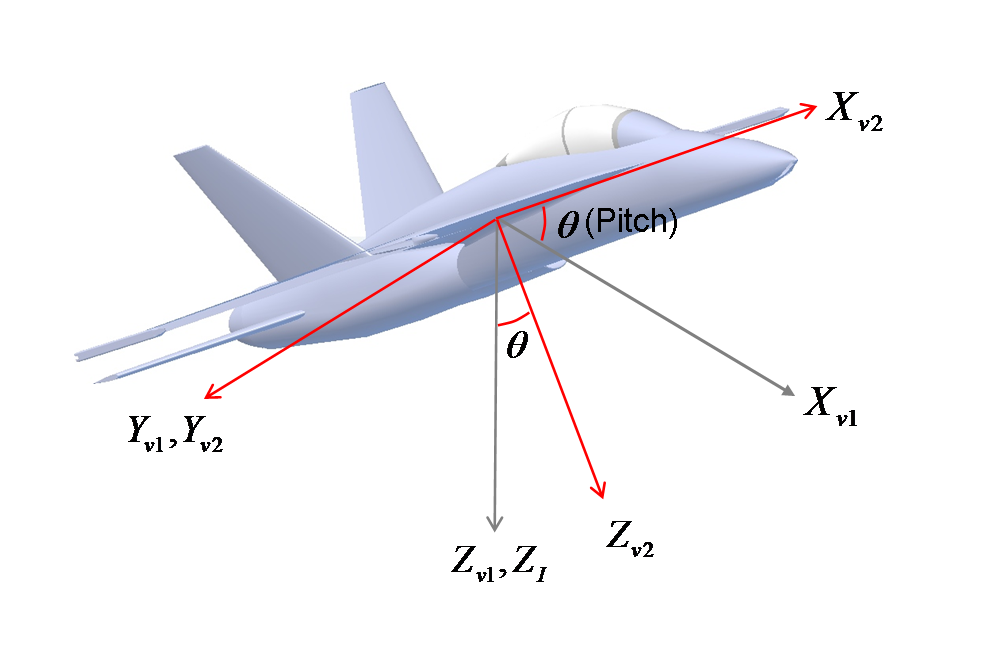

Pitch represents rotation about the vehicle-1 Y-axis by an angle $\theta$ as shown in Figure 3.  For clarity, the inertial-frame axes are not shown.  The vehicle-1 frame axes are shown in gray, and the vehicle-2 axes are shown in red.  It is important to note that pitch is NOT rotation about the inertial-frame Y-axis.

Figure 3 – The Vehicle-3 Frame (Yaw and Pitch Rotation Applied)

The rotation matrix for moving from the vehicle-1 frame to the vehicle-2 frame is given by

$R_{v1}^{v2}(\theta)&space;=&space;\begin{pmatrix}&space;\cos(\theta)&space;&&space;0&space;&&space;-\sin(\theta)\\&space;0&space;&&space;1&space;&&space;0&space;\\&space;\sin(\theta)&space;&&space;0&space;&&space;\cos(\theta)&space;\end{pmatrix}.$

The rotation matrix for moving from the inertial frame to the vehicle-2 frame consists simply of the yaw matrix multiplied by the pitch matrix:

$R_I^{v2}(\theta,\psi)&space;=&space;R_{v1}^{v2}(\theta)R_I^{v1}(\psi)$.

### 5. The Body Frame (Yaw, Pitch, and Roll Rotation)

The body frame is the coordinate system that is aligned with the body of the sensor.  On an aircraft, the body frame x-axis typically points out the nose, the y-axis points out the right side of the fuselage, and the z-axis points out the bottom of the fuselage.

The body frame is obtained by performing a rotation by the angle $\phi$ around the vehicle-2 frame x-axis as shown in Figure 4.  For clarity, the inertial frame and vehicle-1 frame axes are not shown.  The vehicle-2 frame axes are shown in gray, while the body-frame axes are shown in red.

Figure 4 – The Body Frame (Yaw, Pitch, and Roll applied)

The rotation matrix for moving from the vehicle-2 frame to the body frame is given by

$R_{v2}^B(\phi)&space;=&space;\begin{pmatrix}&space;1&space;&&space;0&space;&&space;0&space;\\&space;0&space;&&space;\cos(\phi)&space;&&space;\sin(\phi)&space;\\&space;0&space;&&space;-\sin(\phi)&space;&&space;\cos(\phi)&space;\end{pmatrix}.$

The complete rotation matrix for moving from the inertial frame to the body frame is given by

$R_I^B(\phi,\theta,\psi)&space;=&space;R_{v2}^B(\phi)R_{v1}^{v2}(\theta)R_I^{v1}(\psi).$

Performing the multiplication, and letting c represent cos and s represent sin, the complete rotation from the inertial frame to the body frame is given by

$R_I^B(\phi,\theta,\psi)=&space;\begin{pmatrix}&space;c(\psi)c(\theta)&space;&&space;c(\theta)s(\psi)&space;&&space;-s(\theta)&space;\\&space;c(\psi)s(\phi)s(\theta)&space;-&space;c(\phi)s(\psi)&space;&&space;c(\phi)c(\psi)&space;+&space;s(\phi)s(\psi)s(\theta)&space;&&space;c(\theta)s(\phi)&space;\\&space;s(\phi)s(\psi)&space;+&space;c(\phi)c(\psi)s(\theta)&space;&&space;c(\phi)s(\psi)s(\theta)-&space;c(\psi)s(\phi)&space;&&space;c(\phi)c(\theta)&space;\end{pmatrix}.$

The rotation matrix for moving the opposite direction – from the body frame to the inertial frame – is given by

$R_B^I(\phi,\theta,\psi)&space;=&space;R_I^{v1}(-\psi)R_{v1}^{v2}(-\theta)R_{v2}^B(-\phi).$

Performing the multiplication, the complete rotation from the body frame to the inertial frame is given by

$R_I^B(\phi,\theta,\psi)&space;=&space;\begin{pmatrix}&space;c(\psi)c(\theta)&space;&&space;c(\psi)s(\phi)s(\theta)&space;-&space;c(\phi)s(\psi)&space;&&space;s(\phi)s(\psi)&space;+&space;c(\phi)c(\psi)s(\theta)&space;\\&space;c(\theta)s(\psi)&space;&&space;c(\phi)c(\psi)&space;+&space;s(\phi)s(\psi)s(\theta)&space;&&space;c(\phi)s(\psi)s(\theta)&space;-&space;c(\psi)s(\phi)\\&space;-s(\theta)&space;&&space;c(\theta)s(\phi)&space;&&space;c(\phi)c(\theta)&space;\end{pmatrix}.$

Note that all this does is reverse the order of operations and reverse the direction of rotation.

### 6. Gimbal Lock

Gimbal lock occurs when the orientation of the sensor cannot be uniquely represented using Euler Angles.  The exact orientation at which gimbal lock occurs depends on the order of rotations used.  On CH Robotics’ sensors, the order of operations results in gimbal lock when the pitch angle is 90 degrees.

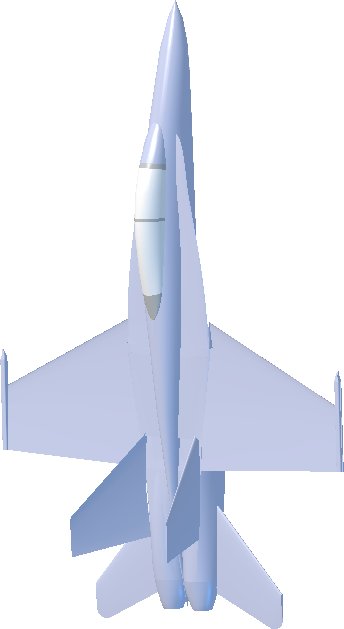

Intuitively, the cause of gimbal lock is that when the pitch angle is 90 degrees, yaw and roll cause the sensor to move in exactly the same fashion.  Consider Figure 5 for an illustration of the gimbal lock condition.  By following the sequence of rotations discussed in this paper, it should be easy to see that the orientation in Figure 5 can be obtained by yawing and then pitching, OR by pitching and then rolling.

An orientation sensor or AHRS that uses Euler Angles will always fail to produce reliable estimates when the pitch angle approaches 90 degrees.  This is a fundamental problem of Euler Angles and can only be solved by switching to a different representation method.  All CH Robotics attitude sensors use quaternions so that the output is always valid even when Euler Angles are not.

### 7. Using The Euler Angle Outputs of the Sensor

The rate gyros, accelerometers, and magnetometers on CH Robotics orientation sensors are aligned with the body frame of the sensor, so that if inertial frame data is needed, the sensor outputs must be converted from the body frame to the inertial frame.  This can be accomplished by performing a simple matrix multiplication using the matrices described in ‎Section 5.

For example, suppose that we want to obtain inertial frame accelerometer data so that we can integrate acceleration to obtain velocity estimates in the north, east, and down directions.  Let $\inline&space;\mathbf{v}_B$ be the measured body-frame acceleration vector reported by the sensor.  Then the inertial frame acceleration is given by

$\mathbf{v}_I&space;=&space;R_B^I(\phi,\theta,\psi)\mathbf{v}_B.$

The vector $\inline&space;\mathbf{v}_I$ gives us the measured acceleration with respect to the inertial frame.  Note that this gives us the measured inertial-frame acceleration, not the actual acceleration.  A little more work is required before we can extract the physical acceleration of the sensor, and even then, the obtainable velocity accuracy using low-cost sensors is extremely poor.  For more details, see Using Accelerometers to Estimate Velocity and Position.

Magnetometer data can also be converted to the inertial frame in exactly the same fashion as the accelerometers if desired.

Converting rate gyro data to the inertial frame is a little more complicated.  Like the accelerometer and magnetometer data, the rate gyro data is reported with respect to the body frame of the sensor.  This means that the derivative of your Euler Angles is NOT what is being reported by the rate gyros.  If you want Euler Angle rates, the rate gyro data must be converted to the proper coordinate frames.  This is a little more complicated than it was for the accelerometers and magnetic sensors because each gyro angular rate must be converted to a different coordinate frame.  Recall that yaw represents rotation about the inertial frame z-axis, pitch represents rotation about the vehicle-1 frame y-axis, and roll represents rotation about the vehicle-2 frame x-axis.  Then to get the angular rates in the proper frames, the z-axis gyro output must be rotated into the inertial frame, the y-axis gyro output must be rotated into the vehicle-1 frame, and the x-axis gyro output must be rotated into the vehicle-2 frame.

The resulting transformation matrix for converting body-frame angular rates to Euler angular rates is given by

$D(\phi,\theta,\psi)&space;=&space;\begin{pmatrix}&space;1&space;&&space;\sin(\phi)\tan(\theta)&space;&&space;\cos(\phi)\tan(\theta)&space;\\&space;0&space;&&space;\cos(\phi)&space;&&space;-\sin(\phi)&space;\\&space;0&space;&&space;\sin(\phi)/\cos(\theta)&space;&&space;\cos(\phi)/\cos(\theta)&space;\end{pmatrix}.$

Let p represent the body-frame x-axis gyro output, q represent the body-frame y-axis gyro output, and r represent the body-frame z-axis output.  Then it follows that the Euler Angle rates are computed as

$\begin{pmatrix}&space;\dot{\phi}&space;\\&space;\dot{\theta}&space;\\&space;\dot{\psi}&space;\end{pmatrix}&space;=&space;\begin{pmatrix}&space;p&space;+&space;q\sin(\phi)\tan(\theta)&space;+&space;r\cos(\phi)\tan(\theta)&space;\\&space;q\cos(\phi)&space;-&space;r\sin(\phi)&space;\\&space;q\sin(\phi)/\cos(\theta)&space;+&space;r\cos(\phi)/\cos(\theta)&space;\end{pmatrix}.$

This operation illustrates mathematically why gimbal lock becomes a problem when using Euler Angles.  To estimate yaw, pitch, and roll rates, gyro data must be converted to their proper coordinate frames using the matrix D.  But notice that there is a division by $\inline&space;\cos(\theta)$

in two places on the last row of the matrix.  When the pitch angle approaches +/- 90 degrees, the denominator goes to zero and the matrix elements diverge to infinity, causing the filter to fail.

The conversion from body-frame gyro data to Euler Angle rates happens internally on all CH Robotics sensors, but the converted data is not made available on all CH Robotics products.  Refer to specific device datasheets for details on what data is available.  For devices where Euler Angle rates are not reported, the body-frame angular rate data can be converted as described above.
