CH Robotics Serial Interface

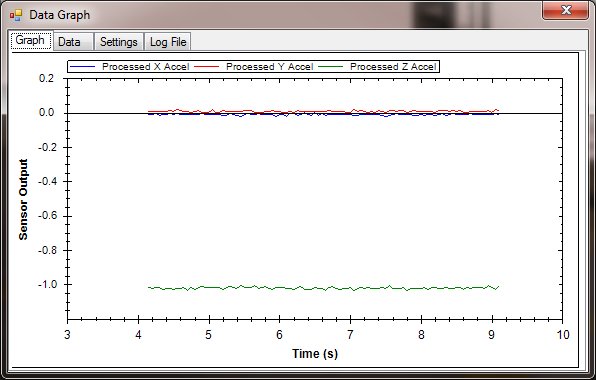

Plot and Log Data in Real-Time

UM6_accel_data

Set Configuration Settings

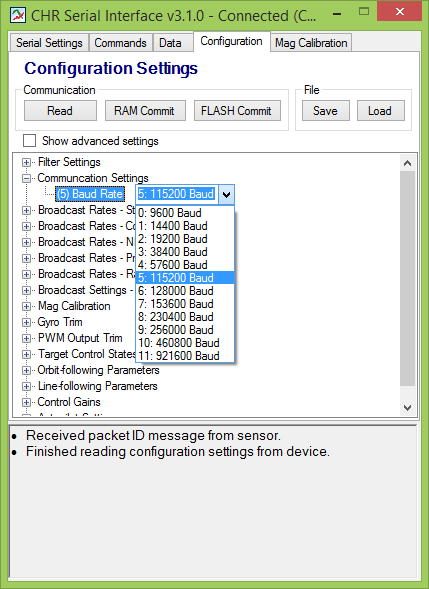

Configure Sensor Settings

download_icon Version 3.1.2

Overview

The CHR Serial Interface makes it easy to plot data in real-time, log data, and set configuration registers on CH Robotics sensors and power supplies. Any CH Robotics device that communicates using the CHR binary serial protocol can be controlled using the Serial Interface.

Supported Devices

System Requirements

  • Operating System: Windows 8, Windows 7, Windows Vista
  • .NET 4.5 or newer (included with installer)
  • At least one open serial port or USB-serial converter (our USB Expansion Board works)

Source Code

Old Versions
