How To Buy
The USB Expansion Board is now being manufactured by our partners at Redshift Labs, and can be purchased directly from Redshift or from Pololu.

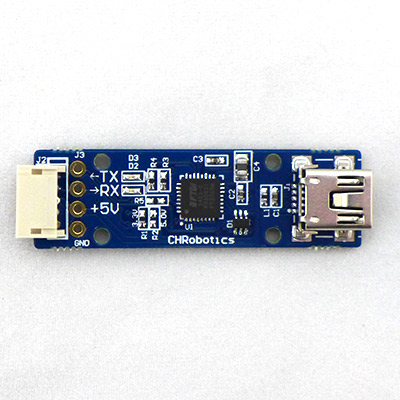

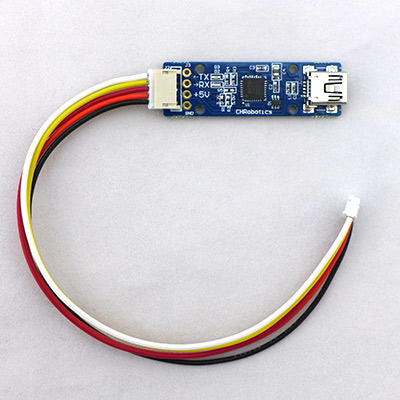

The USB expansion board allows the UM7 or GP9 to be connected directly to your computer. Comes with either a 6-pin, two-sided cable compatible with the GP9, or a 5-pin, two-sided cable compatible with the UM7. Also comes with a 6 foot USB A to mini-B cable.
The expansion board provides +5.0V out to power the UM7 or GP9 directly from the USB bus.
Extra cable assemblies can be purchased here.
- 5-pin cable assembly length: 6″
- Output: 3.3V TTL UART
- Max current output on +5.0V output: 100mA
- CHR Serial Interface
- You may need to install these drivers: FT232 Virtual COM Port Drivers
Getting started: Using the USB Expansion Board
(Watch on YouTube for hi-def version)
